NCH6100HV Nixie HV Power Module
Product ID: 1
Short Link to This Product: https://omnix.ie/1

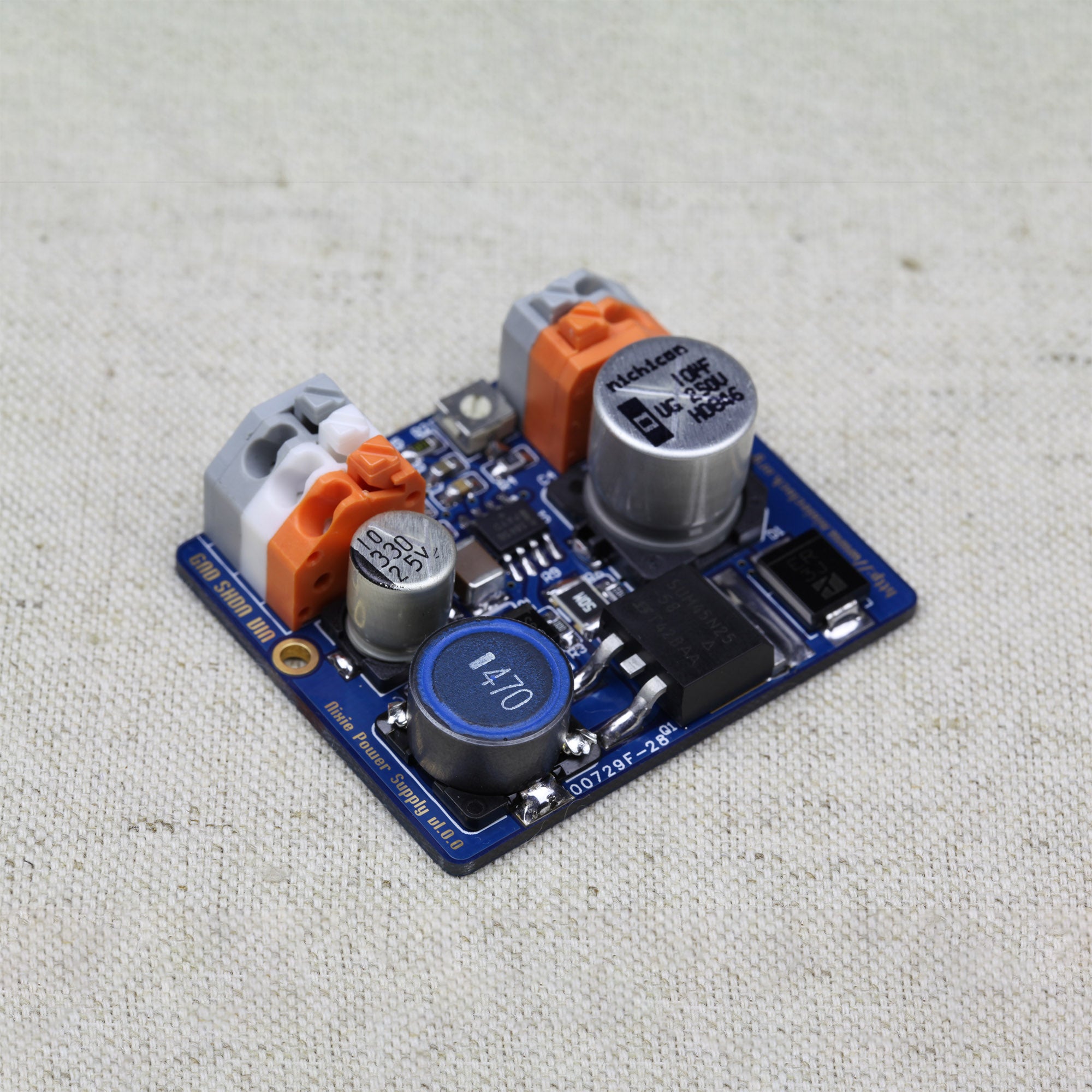

FEATURES

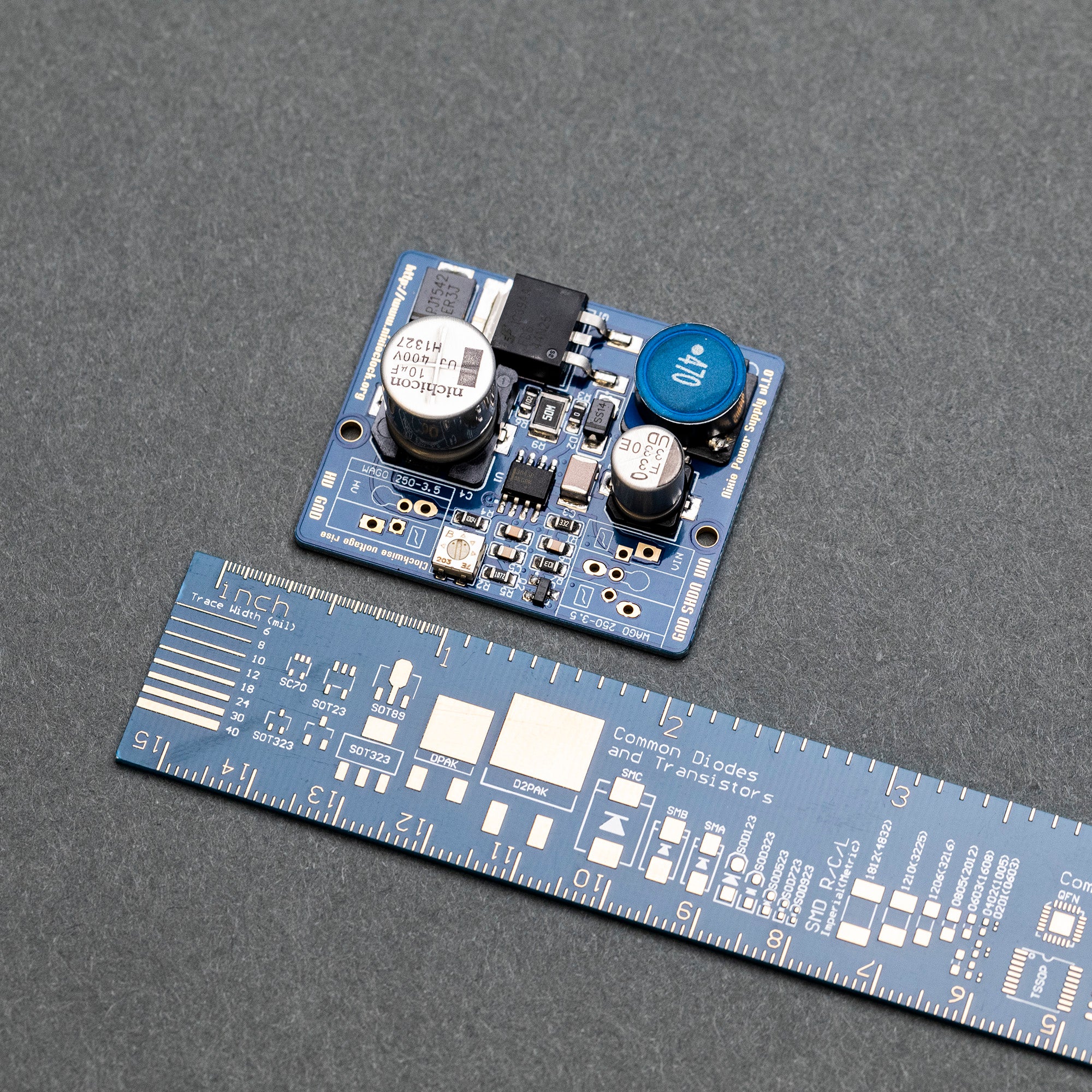

- Module Dimension: 1.8in x 1.5in x 0.6in (45mm x 37mm x 15mm)
- DC Input: 12-24V

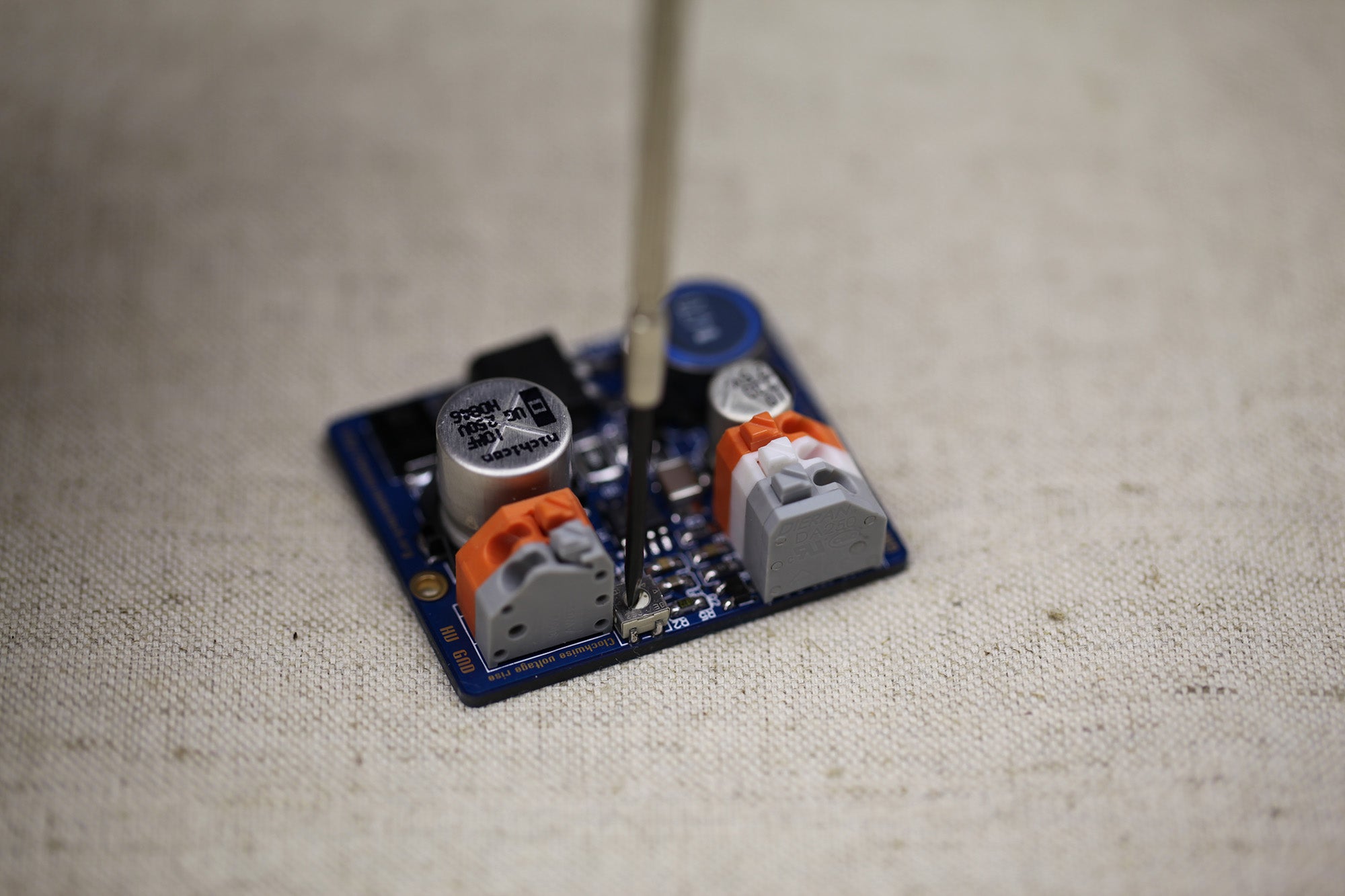

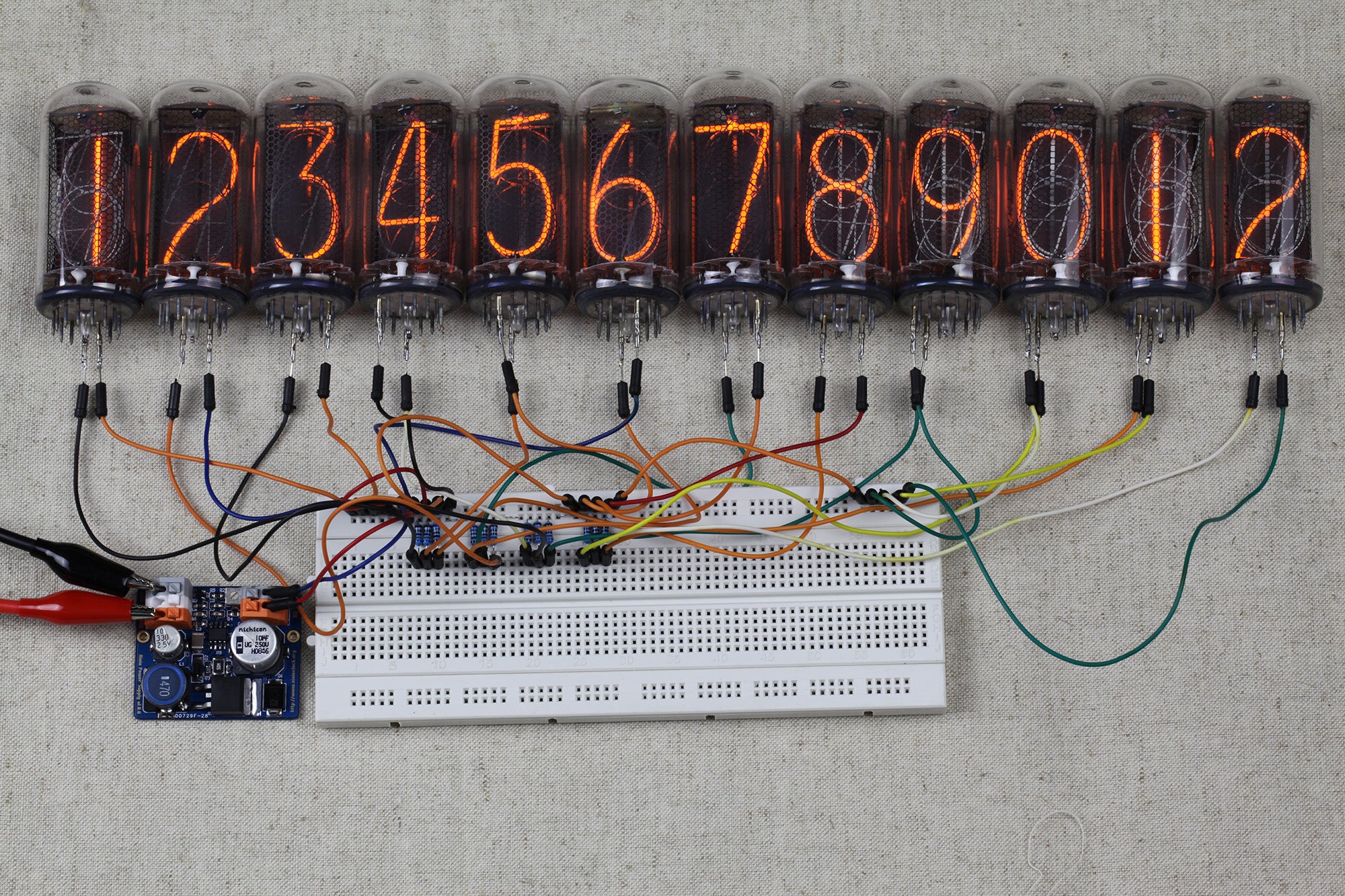

- DC Output: 85-235V (55mA max @170V)
- Mounting Holes: M2 size (2mm), Qty: 2
The 3-pin connector pin definition (DC Input):
- Orange: DC Input, 12-24V
- White: Enable (Output will be enabled if this pin is NOT connected or connected to GND. Can be controlled with an I/O pin of an MCU)
- Grey: Ground

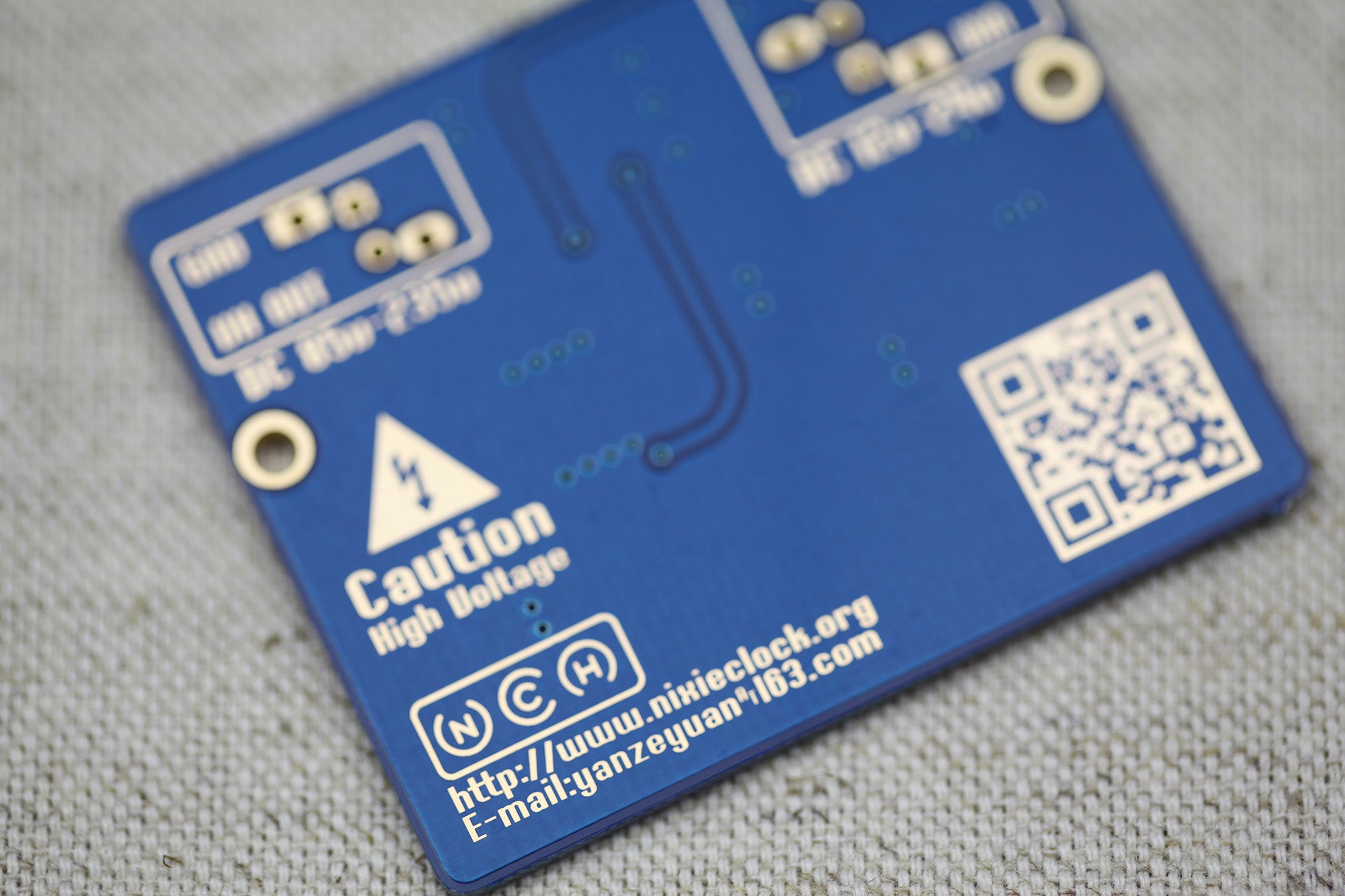

The 2-pin connector pin definition (DC Output):
- Orange: DC Output, 85-235V
- Grey: Ground

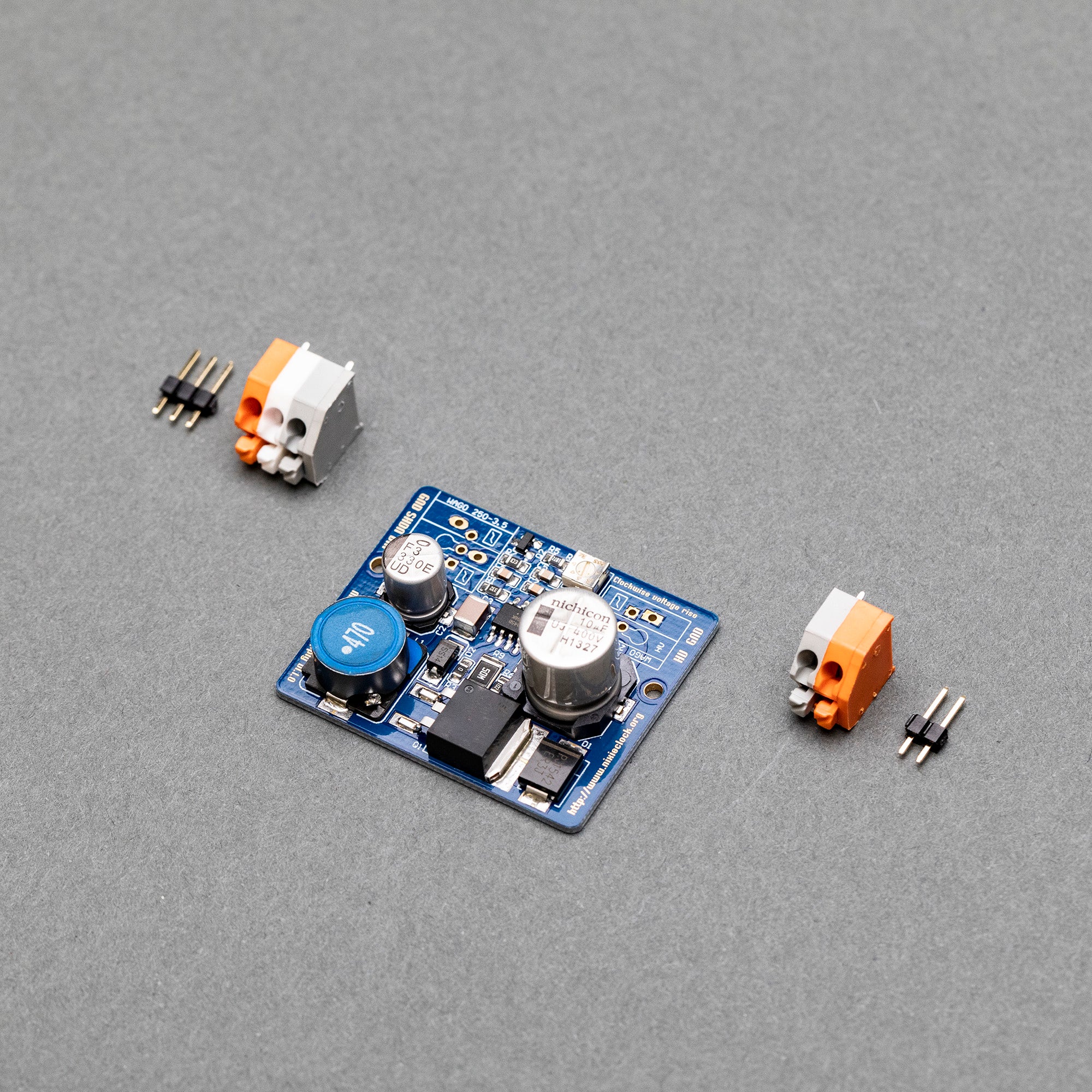

‣ Note: Either the mounting pins or the wire terminals can be soldered on to the power supply module based on your needs. Not both.
